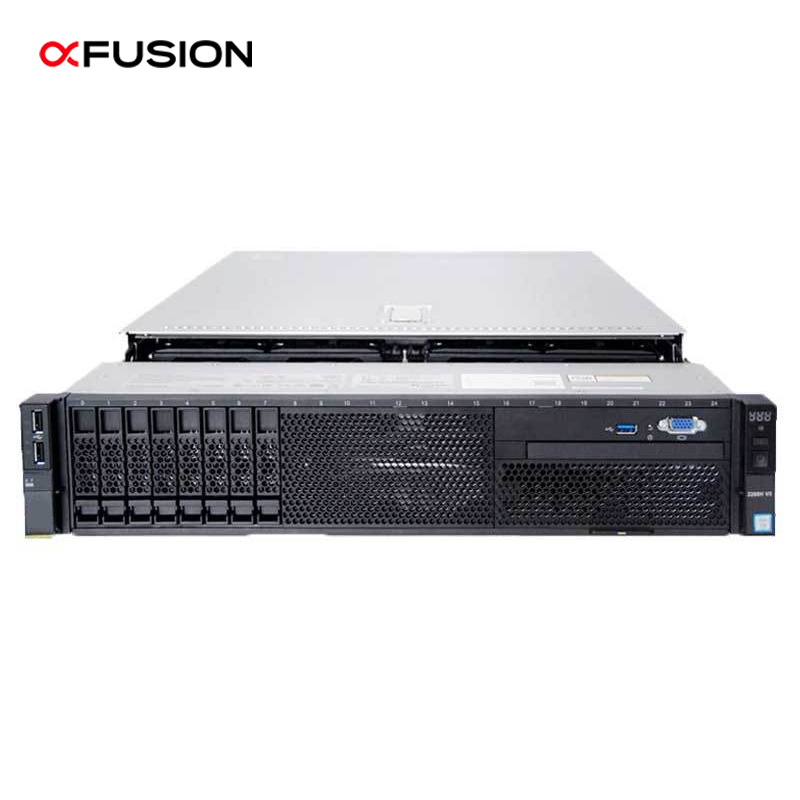

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively. Hot swappable function supported. |
| PCIe Expansion | Maximum of fourteen PCIe 4.0 slots, including one dedicated for RAID card, two FlexIO card slots for OCP 3.0, and eleven PCIe 4.0 slots for standard cards. |
| Chip Set | Intel C621A |
| Management | iBMC chip integrates one dedicated GE management port. Supports Redfish, SNMP, and IPMI 2.0; HTML5/VNC KVM remote management. Optional FusionDirector software for intelligent full lifecycle management. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |

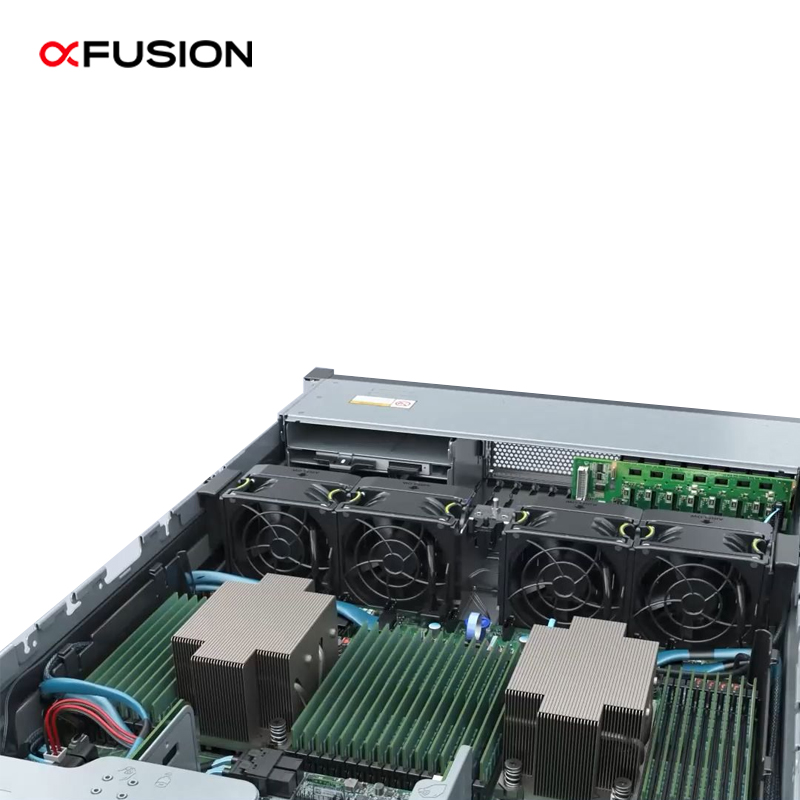

| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Power Supply Units | Two hot-swappable PSUs in 1+1 redundancy mode. Options include 900W, 1200W, 1500W, 2000W, 3000W (Platinum/Titanium/HVDC/DC options). |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.) |
As a leading integrated IT solutions provider, we combine cutting edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. Our team includes over 300 highly skilled professionals and 150+ certified engineers with 15 years of expertise in designing and maintaining mission-critical IT environments. We provide Computing servers, Network storage, Network switches, and essential components like CPU, RAM, and Hard Drives.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
