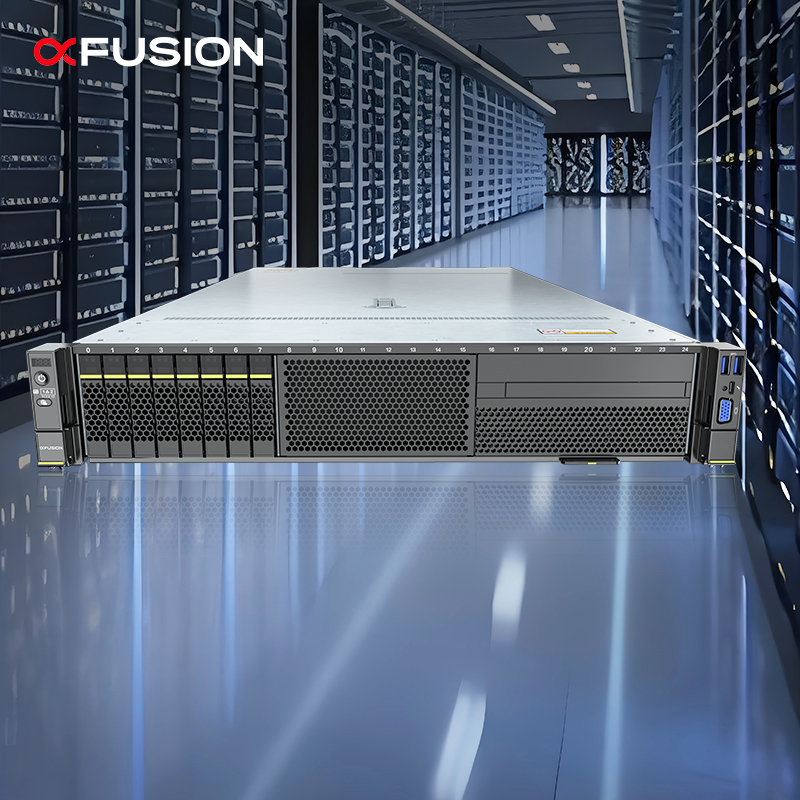

The FusionServer 2288H V6 is a versatile 2U 2-socket rack server designed with flexible configurations to handle diverse workloads, including cloud computing, virtualization, databases, and big data analysis. Equipped with 2-socket Intel® Xeon® Scalable processors, it supports up to 32 DDR4 RAM modules and 14 PCIe expansion slots, providing robust local storage resources.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
• 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs • Dual M.2 SSDs |

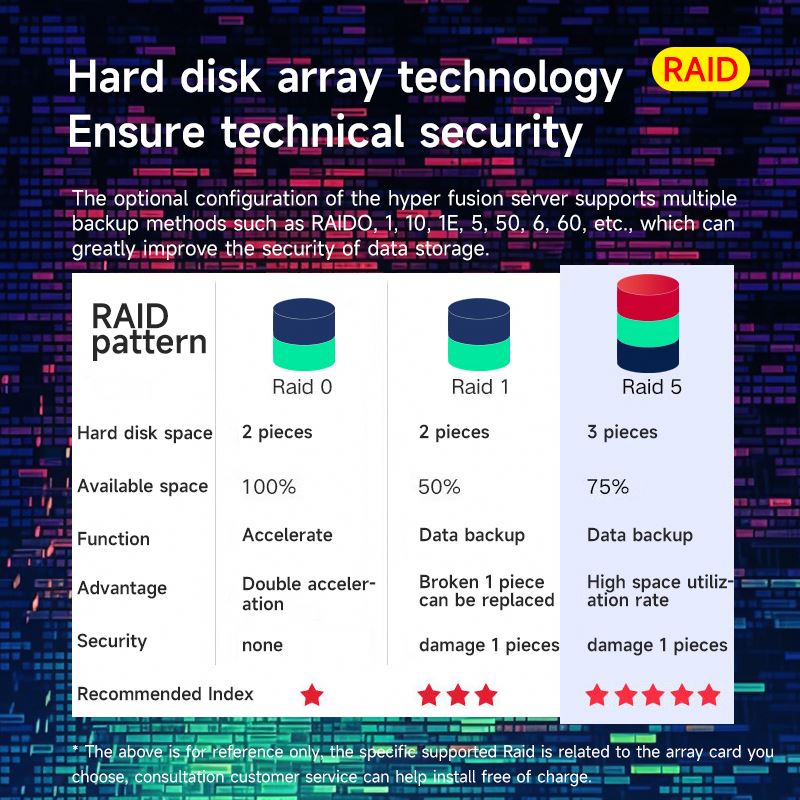

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor; RAID level migration, drive roaming, and self-diagnosis. |
| Network | OCP 3.0 NICs; two FlexIO card slots supporting two OCP 3.0 network adapters; Hot swappable. |
| PCIe Expansion | Maximum 14 PCIe 4.0 slots (1 for RAID, 2 for OCP 3.0, 11 for standard PCIe cards). |
| Chip Set | Intel C621A |
| Management | iBMC chip integrates GE management port; supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM; Optional FusionDirector software. |
| Operating Systems | Windows Server, SUSE Linux, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian. |
| Power Supply Units | 1+1 redundancy; Options: 900W, 1200W, 1500W, 2000W, 3000W (Platinum/Titanium/HVDC/-48V DC). |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
